Type L

TYPE L

Maximum width: 4500+4500 mm (two sections)

Maximum reach: Coupling type a 6000 mm

Guide type In 8000 mm

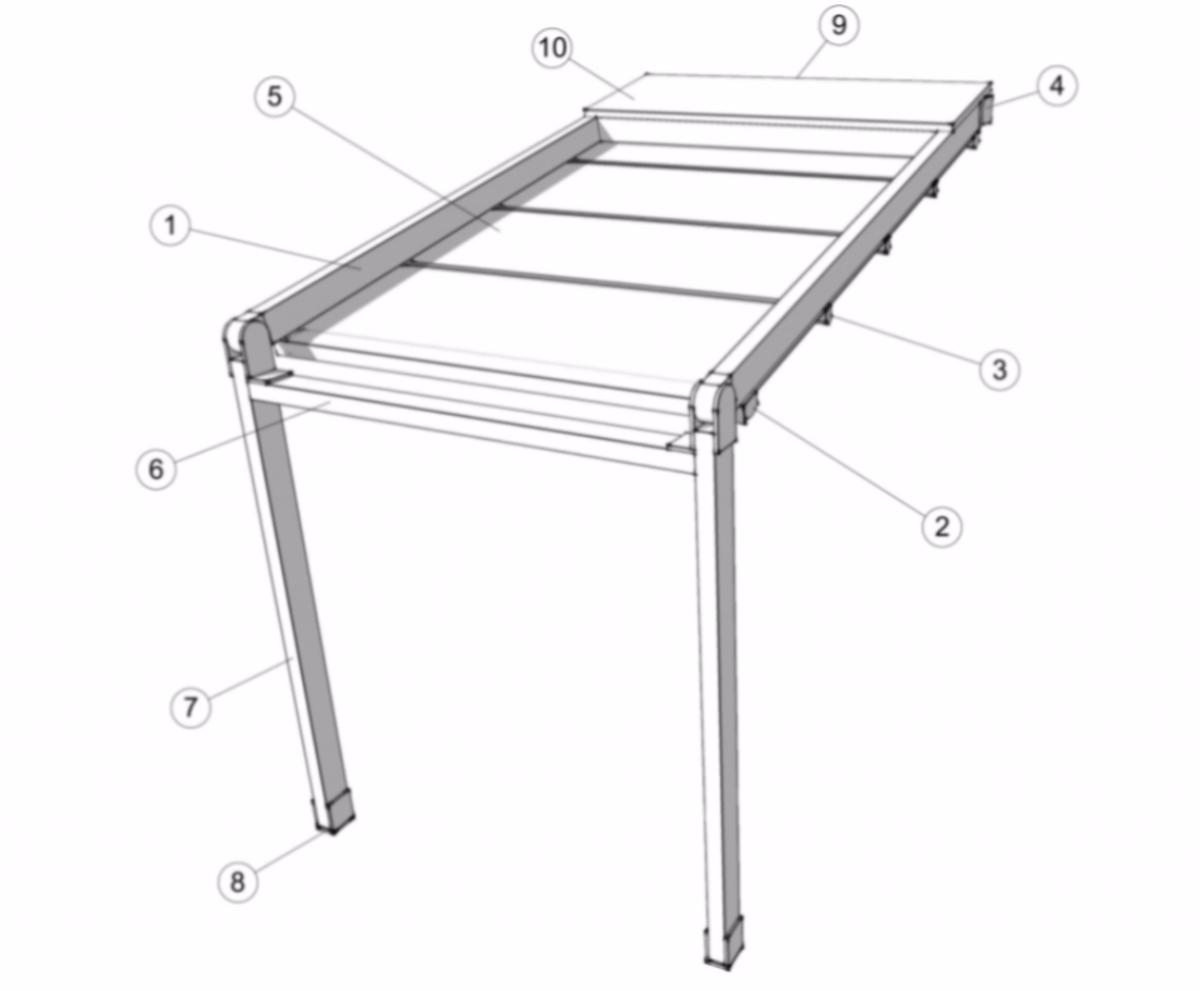

Design description

1. Guide:

seamless aluminum profile for increased strength

Type And Type In



2. The stiffener (large):

seamless aluminum profile for increased strength

3. The stiffener (small):

seamless aluminum profile for increased strength

7. Stand Type A:

seamless aluminum profile for increased strength

6. Cross profile:

seamless aluminum profile for increased strength

4. 8. Console:

seamless aluminium profile, machined with CNC

Top Bottom



5. Leaf:

-PVC, three-layer Blackout firm of Sattler (Austria)

-Acryl Awning fabric Company Sattler (Austria)

Carriage:

seamless aluminium profile, machined with CNC. Roller made of Polyamide brand 6 MO with the addition of graphite as a dry self-lubricating element.

Strap:

T10-16 reinforced, the German Company Veso

9. Engine:

The German Firm Geiger, 230 Volts

10. Protective cover:

-Profiled sheet roll-formed with stiffening ribs

-Aluminium sheet bent with ribs
