Rafshtory E80 F1 QM (Quick mounting)

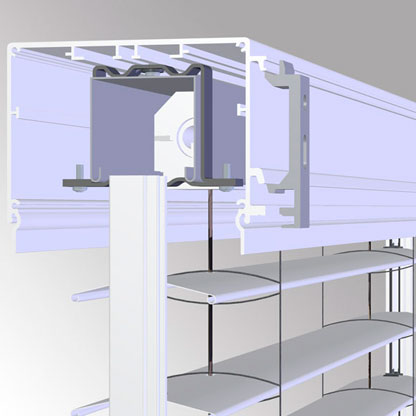

Rapstore supplied with the box thus greatly facilitating the mounting brackets attached to a window in suitable places. It turns possible due to the large stiffness of extruded aluminum boxes.

It is especially important for crossbar-resistant facades, when fastening is possible only on racks that come in steps often larger than the maximum permissible distance between locks that carry even an aluminum cornice

How it works





1. Box QM.Extruded aluminum profile, increased rigidity, is painted by powder paint in color according to RAL K7.

2. Extension slat for box QM.Extruded aluminum profile, increased rigidity, is painted by powder paint in color according to RAL K7.


3. Cornice/Shaft.Eaves from an aluminium profile with high rigidity for reliable and fastening it in drive and pulling mechanisms. We use only aluminum cornice it is more expensive than steel, but it ensures the correct and durable operation.

4. Lifting thread.Width of 6 mm and a tensile strength of 1000 N. Resistant to atmospheric influences.

 lamel_e80s1.jpg 5. Slats.The width of the slats 80 mm from zavartalanul the edge (for rigidity) Thickness of 0.45 mm.

6. Guide runner.Guide the runner – reinforced polyamide resistant to UV rays.

7. The guide strut.Guides - extruded aluminium profile with inserts to reduce noise and provide better slip, painted in RAL color.

type F1 type F2 type F3



8. Bottom bracket.The bottom lamella made from seamless aluminium, painted in RAL colour side covers and the guide runner of reinforced polyamide resistant to UV rays.
The Actuator (E80)
Manual control (C80)




9. Management.The external blinds are used, the actuators, the knob and gear of the German company Geiger or the electric company Somfy. Motor 230 volt, protection class IP 54, it is possible to use one engine for multiple rapstar. The actuator can be operated via buttons, remote controls, special programmable control units, or mobile phone.







It is possible to use manual drive by knob, gear units and gear (type C80 F1).

   Standard colours of the slat:


Ral 9010  Ral9010


white
Ral 9006 Ral9006


metallic grey
Ral 8017 Ral8017


brown
Ral 1015 Ral9015


beige
Ral 7016 Ral7016


anthracite
Ral, 7012

light grey


Order forms:

Упрощенный бланк заказа рафштор быстрого монтажа Qm с профильными направляющими (F1)
Бланк заказа рафштор с профильными направляющими (F1)
Бланк заказа рафштор с тросовыми направляющими (S1)

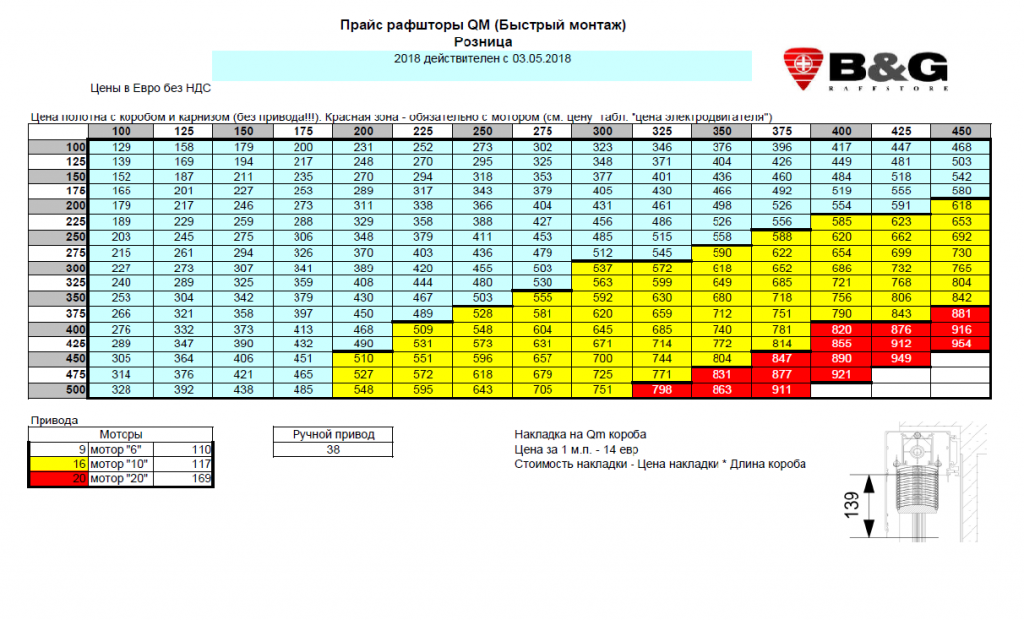

PRICE 2018 Rafshtory QM
