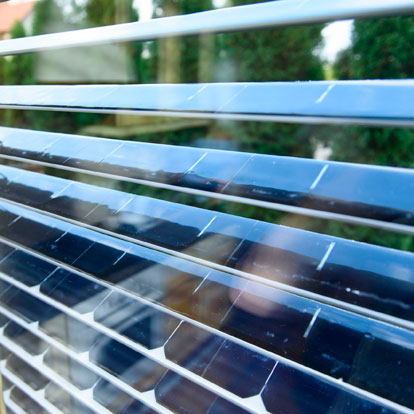

Rafshtory with solar cellsBapema

The most popular in private homes, significantly reduce air conditioning costs or to abandon it altogether.

Order service

How it works

1. Box.Bent boxes of various shapes from aluminum sheet of thickness 1.5 – 2 mm, or thick steel plate

0.5 mm with zinc-aluminum coating. Colour – any Ral scale (except signal and pearl shades).

2. Mounting bracket (Yoke).Bent steel strip thickness 4 mm with zinc-containing coating. Possible to paint in any color according to Ral scale (except signal and pearl shades).

3. Cornice/Shaft.Eaves from an aluminium profile with high rigidity to reliably host and mount it drive rapstar and pulling mechanisms.

4. Lifting thread.Width of 6 mm and a tensile strength of 1000 N. Resistant to atmospheric influences.

5. Slats.The width of the slats 80 mm from zavartalanul the edge (for rigidity) Thickness of 0.45 mm.

6. Guide runner.Guide runner

7. The guide strut. (typeF1) Guides to provide free movement of the slats with a sharp temperature changes. When using the guide maximum width rapstar is 5 m.

8. Bottom bracket.The bottom lamella made of aluminum with synthetic plugs and the guide runner.

The Actuator (E80)

Manual control (C80)

9. Management. The external blinds are used, the actuators, the knob and gear of the German company Geiger. Motor 230 Volt, protection class IP 54, it is possible to use one engine for multiple rapstar. The actuator can be operated via buttons, remote controls, special programmable control units.

It is possible to use manual drive by knob, gear units and gear (type C80 F1).

Standard colours of the slat:
